Description
DEVICE: MAGNETIC COMPASS
BRAND: CASSENS & PLATH
TYPE: TYPE11

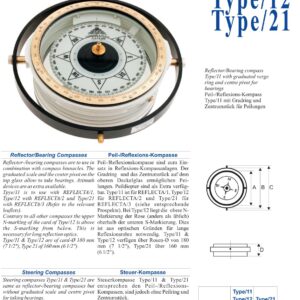

Cassens & Plath Brand Type 11 Model Magnetic Compass.
REFLECTOR/BEARING COMPASS
Reflector-/bearing compasses are to use in combination with compass binnacles. The graduated scale and the center pivot on the
top glass allow to take bearings. Azimuth devices are as extra available. Tpye/11 is to use with REFLECTA/1, Type/12 with REFLECTA/2 und Type/21
with REFLECTA/3 (Refer to the relevant leaflets). Contrary to all other compasses the upper N-marking of the card of Type/12 is above
the S-marking from below. This is necessary for long reflection optics. Type/11 & Type/12 are of card-Ø 180 mm (7 1/2″), Type 21 of 160 mm (6 1/2″).
STEERING COMPASS
Steering compasses Type/11 & Type/21 are same as reflector-/bearing compasses but without graduated scale and centre pivot
for taking bearings. These compass types will be used for overhead , desk mounting applications and in combination with the reflector compass
binnacles REFLECTA/4 and REFLECTA/5 (Refer to relevant leaflets)
TECHNICAL DATA
•Large 3-digit figures each 10°
•Extra marked cardinal and intercardinal points
•One each lubber mark in ahead and aft direction
•Card division 1°
•Longitudinal gimbal, inserts made of bronze
•Vibration resistant expansion chamber
APPROVALS
• MED-Mod. B, For REFLECTA/1 with Type/11, …/12
•RMRS-Russia, RRR-Russsian River Register
•ISO 25862
•IMO A.382(X)
•CCS-China

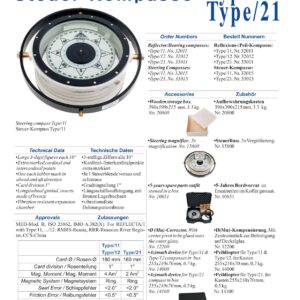

SPECIFICATIONS
•Card-Ø : 180 mm
•Card division : 1°
•Mag. Moment : 4 Am2
•Magnetic System : Ring
•Swirl Error : < 2.0°
•Friction Error : < 0.5°
•Directional Error : < 0.5°
•Pitching Tolerance :±180°
•Rolling Tolerance : ±180°
•Weight : 13 kg
ACCESSORIES
•Wooden Storage Box : 390x390x215 mm, 3.3 kg. ( PN: 20800 )
•Steering Magnifier : 3x magnification. ( PN: 15800 )
•5-Years Spare Parts Outfit : Stowed in a box ( PN: 10651 )
•D (Mu)-Corrector : With center pivot to be glued onto the cover glass. ( PN: 12200 )
•Azimuth Device : For Type/11 & Type/12 compasses in box 255x210x70 mm, 0.7 kg. ( PN: 14000 )
