Description
DEVICE: NAVTEX
BRAND: FURUNO
TYPE: NX-500
This NAVTEX Receiver is FURUNO NX500 We can supply to world wide and we can give service in all Turkey Ports. Keep in touch with us.

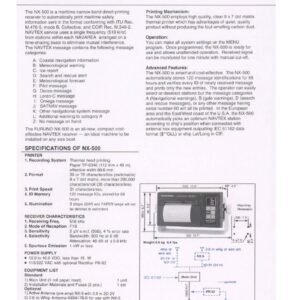

SPECIFICATIONS

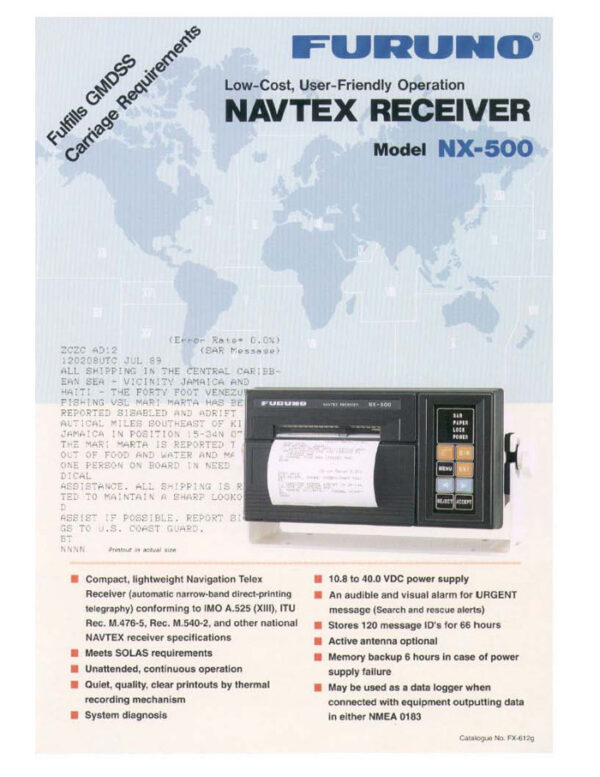

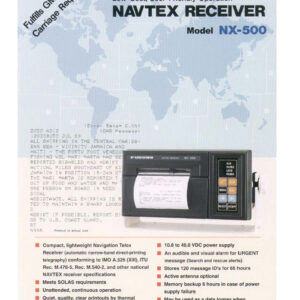

NX-500 NAVTEX RECEIVER
Receiving Frequency 518 kHz or 490 kHz
Mode of Reception F1B
Sensitivity 2V e.m.f. (50 ohms), 4% error rate
Message Category A: Navigation warning
B: Meteorological warning
C: Ice report
D: Search and rescue information/ piracy and armed robbery
E: Meteorological forecast
F: Pilot message
G: Decca message
H: Loran-C message
I: Omega message
J: Differential omega message
K: Other electronic navigational aid and system message
L: Navigational warning (additional)
M to Y: Reserved – presently not used
V: Notice to Fishermen (US only)
Z: QRU (no message on hand)
INTERFACE
Input Data NMEA0183 Ver.1.5/2.0, RS-232C, 4800 bps
GGA, GLL, RMB, ZDA
Output Data Message data for personal computer, RS-232C, 4800 bps
Data length: 8, Stop bit: 1, Parity: None
T/R Code: CR+LF, XON/XOFF Control, Local echo: ON
POWER SUPPLY
12-24 VDC: 180-90 mA
ENVIRONMENTAL CONDITION
Ambient Temperature Antenna unit: -25°C to +70°C
Navtex receiver: -15°C to +55°C
Relative Humidity 95% at 40°C
Water proofing Antenna unit: IEC-IPX6
Navtex receiver: IEC-IPX5
Vibration ±1 mm ±10%, 5 to 13.2 Hz,
Maximum acceleration 7 m/s2
13.2 to 100 Hz (IEC 60945)
