Description
DEVICE: GPS, DGPS, GNSS
BRAND: NSR
TYPE: NGR-1000

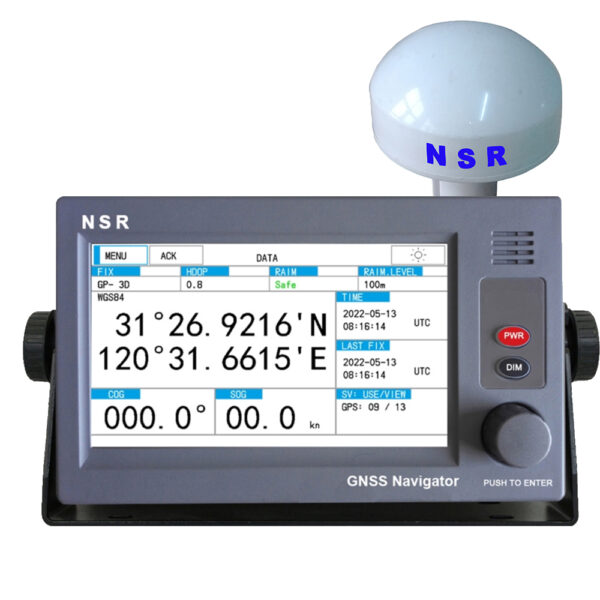

This GPS System is NSR NGR-1000. Display GNSS Navigator, GNSS Antenna with Cable and other spare parts are available. Antenna type can be selected as NGA100 GNSS ANTENNA or NDG-100 DGPS. We can supply to world wide and we can give service in all Turkey Ports. Keep in touch with us.

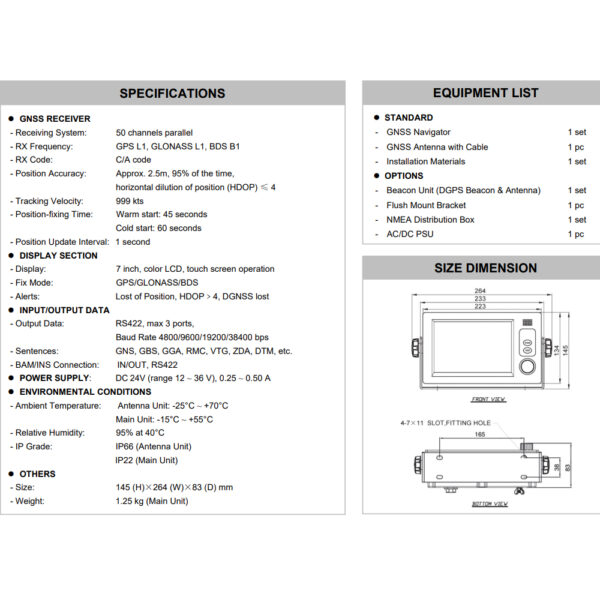

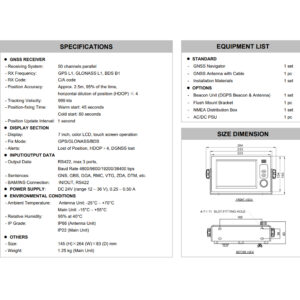

SPECIFICATIONS
| Model | NGR-3000 / NGR-1000 |
| GPS RECEIVER | |
| Receiving System: | GPS, BDS, GLONASS |
| Rx Code: | C/A code |
| Position Accuracy: | Approx. 2.5m, 95% of the time, horizontal dilution of position (HDOP) ≤ 4 |
| Tracking Velocity: | 999 kts |
| Position-fixing Time: | Warm start: 45 seconds. Cold start: 60 seconds |
| Position Update Interval: | 1 second |
| DISPLAY SECTION | |
| Display: | 7 inch, color LCD, touch screen operation |
| Fix Mode: | GPS / GLONASS / BDS |
| Alerts: | Lost of Position, HDOP﹥4, DGPS lost |
| INPUT/OUTPUT DATA | |
| Output Data: | RS422, totally 3 ports, Baud Rate 4800/9600/19200/38400 bps |
| Sentences: | ALF, DTM, GBS, GNS, GGA, GSA, RMC, VTG, ZDA, etc. |
| BAM/INS connection: | IN / OUT, RS422 |
| Input Data: | DGPS RTCM SC-1042.4 |
| Power Supply | DC 24V (range 12 ~ 36 V) 0.25-0.50 A |
| ENVIRONMENT CONDITION | |
| Ambient Temperature: | |
| Relative Humidity: | 95% at 40°C |
| IP Grade: | Antenna Unit: IP66 Main Unit: IP22 |
| Size | 145(H) x 264(W) x 83(D) mm |
| Weight | 1.25kg (main unit) |
DETAILS
– Comprehensive navigation data displays.
– Storage for up to 999 waypoints and 30 routes.
– 7 inch, color LCD, touch screen operation with adjustable brilliance.
– Dedicate port for BAM/INS connection.
– 3 GNSS data outputs.

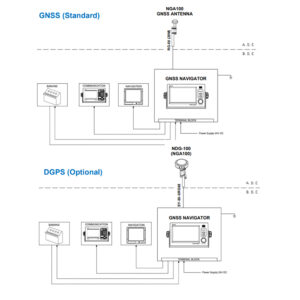

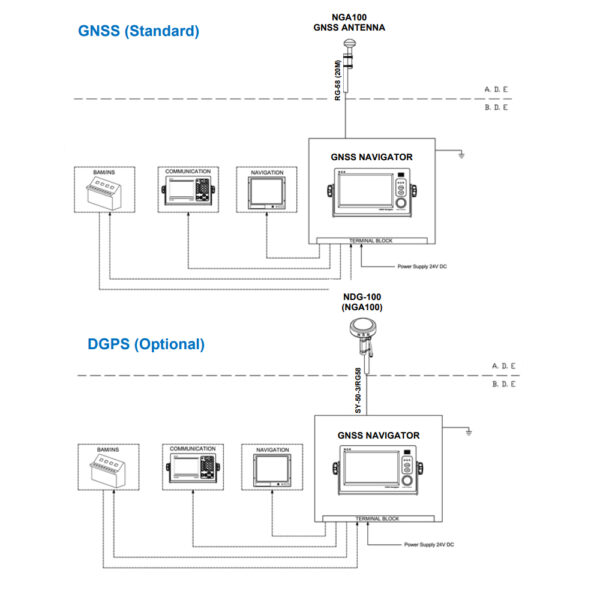

– A DGPS beacon unit (NDG-100) may be connected to the NGR-1000/NGR-3000 to add DGPS function.
– Port for BAM system/INS connection
– GPS, BDS, GLONASS
– DGPS with NSR beacon
EQUIPMENT LIST
STANDARD
– GNSS Navigator
– GNSS Antenna with Cable
– Installation Materials
OPTIONS
– Beacon Unit (DGPS Beacon & Antenna)
– Flush Mount Bracket
– NMEA Distribution Box
– AC/DC PSU
APPROVALS AND RULES
– Meets the requirements of relative IMO and IEC regulation & standards, including IMO MSC112 (73), IMO MSC302 (87), IEC61108-1, IEC 62923-1, IEC 62923-2, etc.
– DNV type approval.
– CCS type approval.
– RS type approval.
– VR type approval.
