Description
DEVICE: INMARSAT, FBB
BRAND: SAILOR
TYPE: FBB-500
SAILOR 500 FleetBroadband is designed for vessels and platforms with demanding requirements for connectivity. It meets the critical needs for voice and data communication of maritime and offshore professionals globally but despite its power, is a compact, lightweight solution. It provides extensive functionality including full access to bandwidth-hungry IP applications, broadband internet/intranet, e-mail, secure VPN and nine simultaneous voice lines.
Included in system

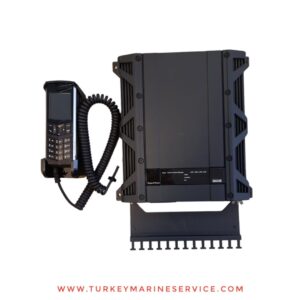

403052C-00501 SAILOR 500 FleetBroadband Above Deck Unit
403738A-00571 SAILOR 250/500 FleetBroadband Below Deck Unit w/o IP Handset
683738A-00570 Accessories f. SAILOR 500/250 BroadBand
RG214 Coax Cable for SAILOR 500/250 for Antenna
Specifications
Inmarsat FleetBroadband approved. Compliant to RTTE, CE Marked. Testet to FCC part 25
Frequency Band
Rx 1525.0 – 1559.0 MHz
Tx 1626.5 – 1660.5 MHz
Ch. spacing 10.5 – 189 kHz, Rx
21 – 189 kHz, Tx
Recommended Antenna Cable
Cable loss max/min 20 dB at 1,62 GHz and 1.0 Ω DC loop resistance
3 dB at 36 MHz -4 dB at 54 MHz
Power Supply and Consumption
DC input range (isolated) 10 to 32V DC
Power (max), 150 W @ 10 – 32V
incl. antenna & PoE output
Environmental Conditions
Ambient Temperature -25 to +55°C
ADU Storage -40 to +85°C
Survival (power on, non functional) -40 to +80°C
Automatic thermal surveillance shuts down terminal gradually at +85˚C PCB temperature
ADU enclosure IPX6
ADU operating humidity “Exposed” according to EN60 945
BDU enclosure IP31
BDU operating humidity 95% non-condensing at +40˚C
Icing (survival) Max 25 mm
Vibration (ADU)
Vibration, operational Random spectrum 1.05 g rms x 3 axes:
5 to 20 Hz: 0.02 g2/Hz
20 to 150 Hz: -3 dB/octave
Vibration, non-operational Random spectrum 1.7 g rms 2 h x 3 axes
(survival) (6 h total): 5 to 20 Hz: 0.05 g2/Hz,
20 to 150 Hz: -3 dB/octave
Ship Motion
Roll +/- 30 deg. per. 4 s, max. 0.7 g tan.
Pitch +/- 15 deg. per. 3 s, max. 0.6 g tan.
Yaw +/- 10 deg. per. 5 s, max. 0.3 g tan.
Surge +/- 0.5g
Sway +/- 0.5g
Heave +/- 0.7g
Turning rate +/- 36˚/s; Acc. 12˚/s²
Headway speed 22 m/s (42 knots)
Wind 100 knots
Mechanical Shock
20g/11 half-sine
Antenna Connector
ADU 50 Ω N, female
BDU TNC-socket, female
