Description

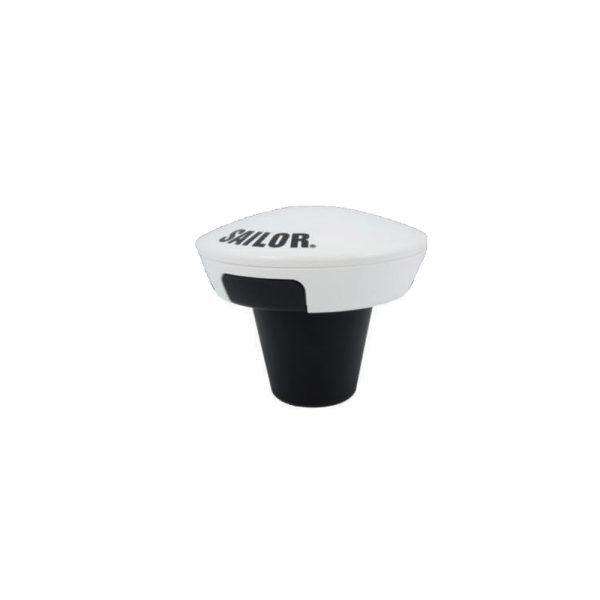

DEVICE: AIS, GPS ANTENNA
BRAND: SAILOR, COBHAM, T&T
TYPE: 6285

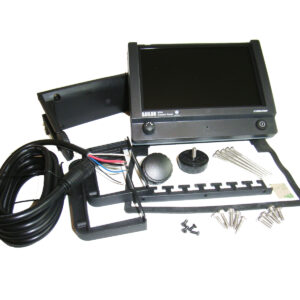

SAILOR,COMHAM,THARANE AND THARANE 6280 AIS Set inculeded AIS Transceiver, AIS Display, AIS GPS Antenna and AIS TRX Antenna. We can supply to world wide and we can give service in all Turkey Ports. Keep in touch with us.
SPECIFICATIONS
SAILOR 6282 AIS Transponder
Weight 1.15 kg
Dimensions (L x W x H) 160 x 270 x 42 mm
Equipment class Protected, according to IEC 60945
Input voltage 10.8 VDC to 31.2 VDC
Power consumption 12 W (0.5 A @24 VDC input voltage)
Heat dissipation 10 W
Temperature -15 °C to +55 °C (Operational)
-30 °C to +70 °C (Storage)
Compass Safe Distance 55 cm (standard magnetic compass)
45 cm (Emergency magnetic compass)
Receivers 156.025 – 162.025 MHz (TDMA)
156.525 MHz (Channel 70, DSC)
Channel bandwidth 25 kHz
RF Output Power High: 12.5 W
Low: 1 W
Low power forced control (gas alarm): 1 W
Frequency 156.025 – 162.025 MHz
VHF connector TNC female
The SAILOR 6282 AIS Transponder is transmitting in different intervals
depending of the dynamic input data as speed and turn. The reporting
intervals are as follows:
GPS connector TNC female
VHF and GPS cable RG214 or better
Connection to SAILOR 6004
Control Panel
LAN (LWE IEC 61162-450)
Connections to sensors and PI 50 pin sub-D
